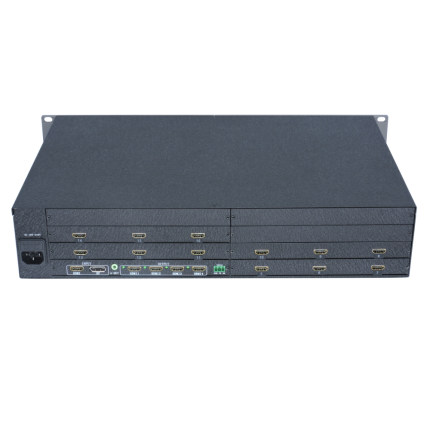

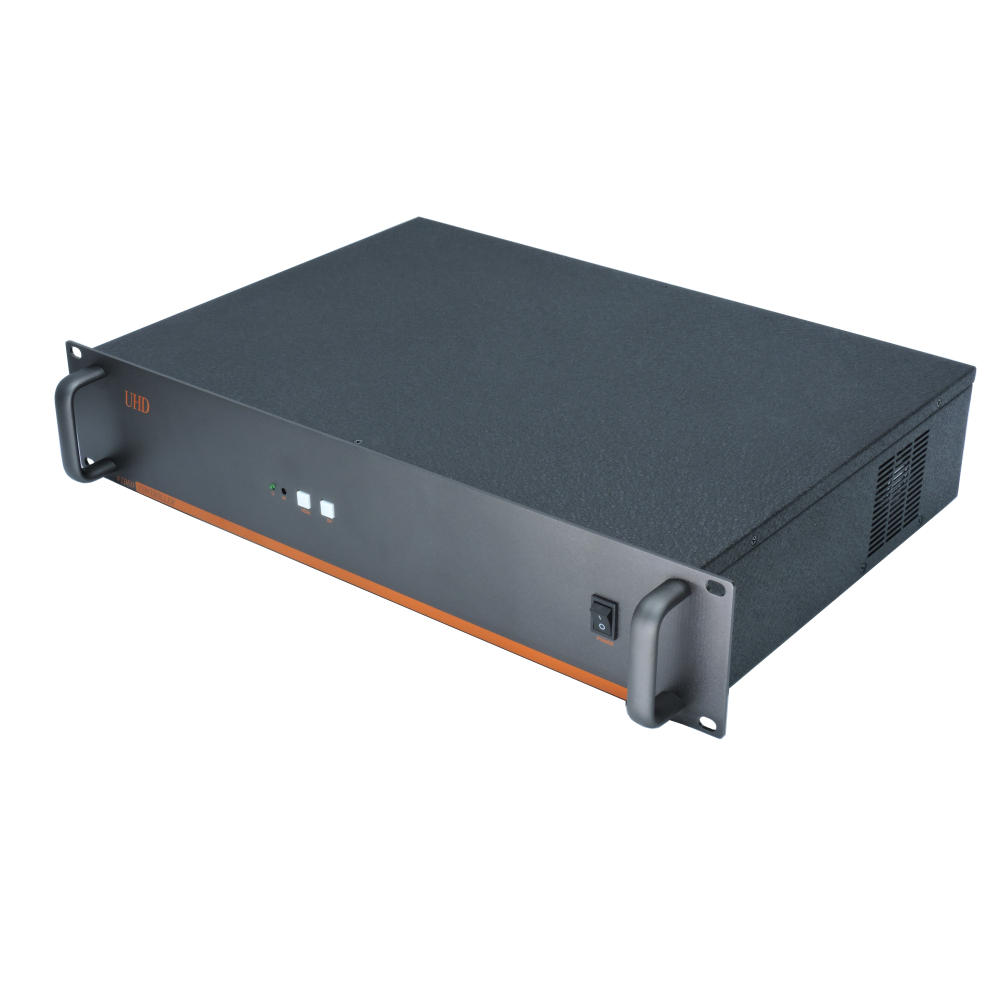

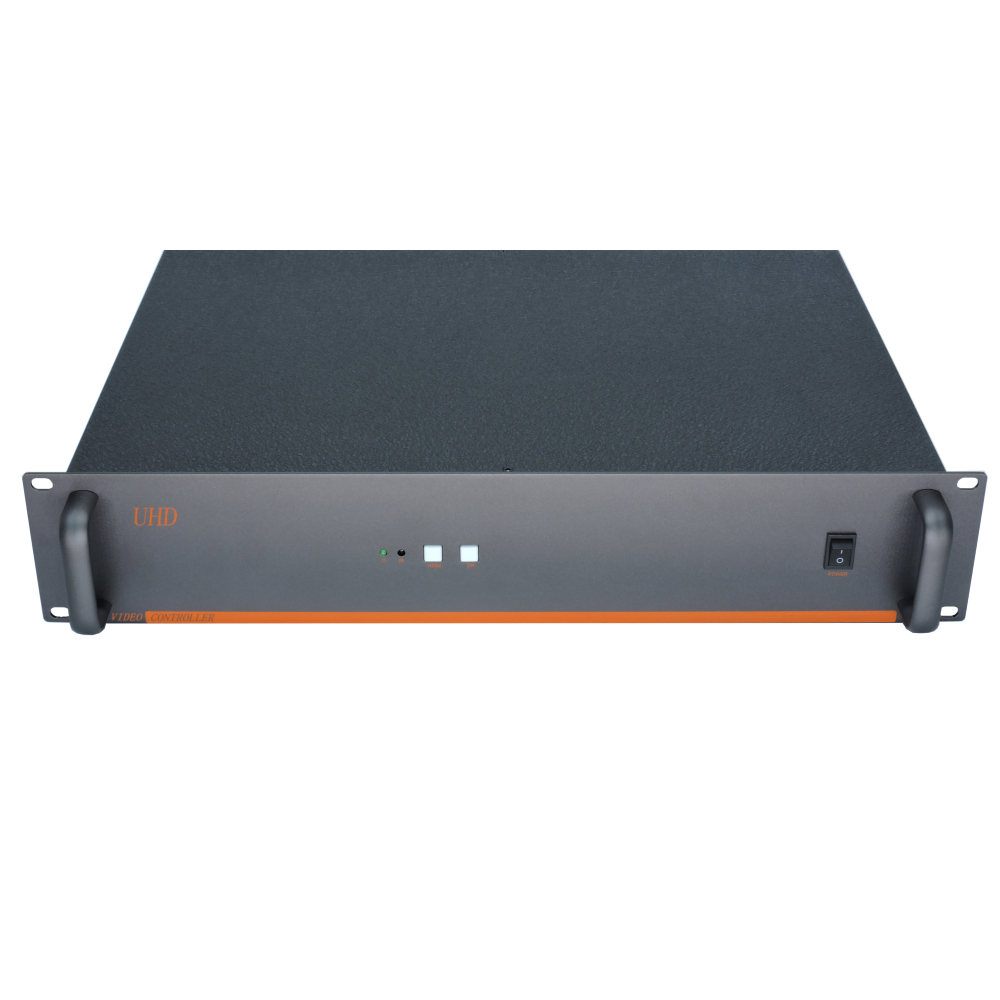

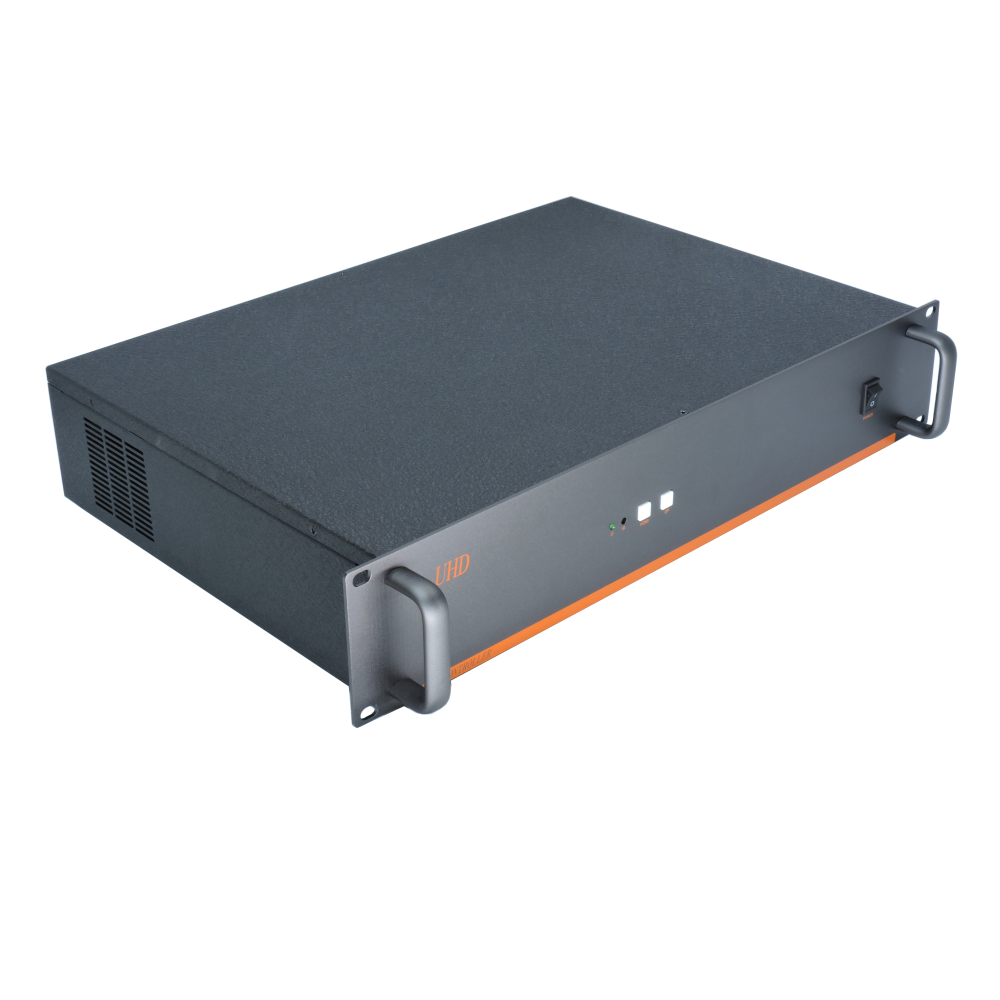

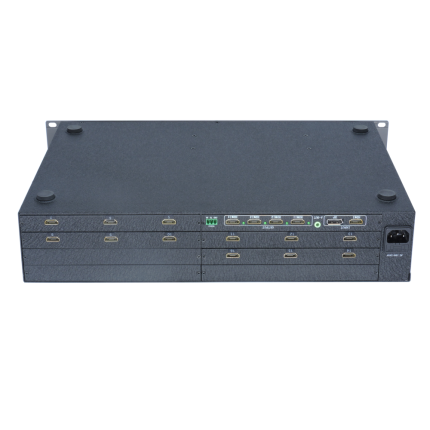

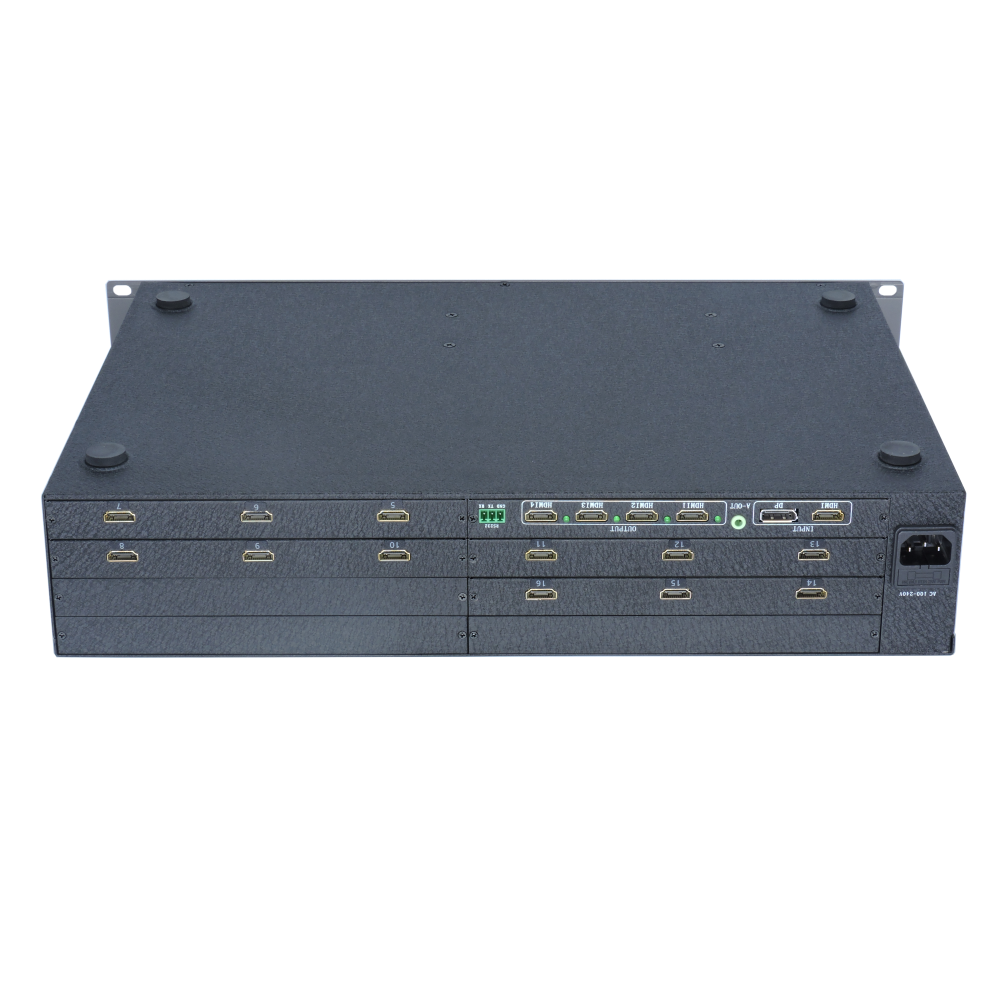

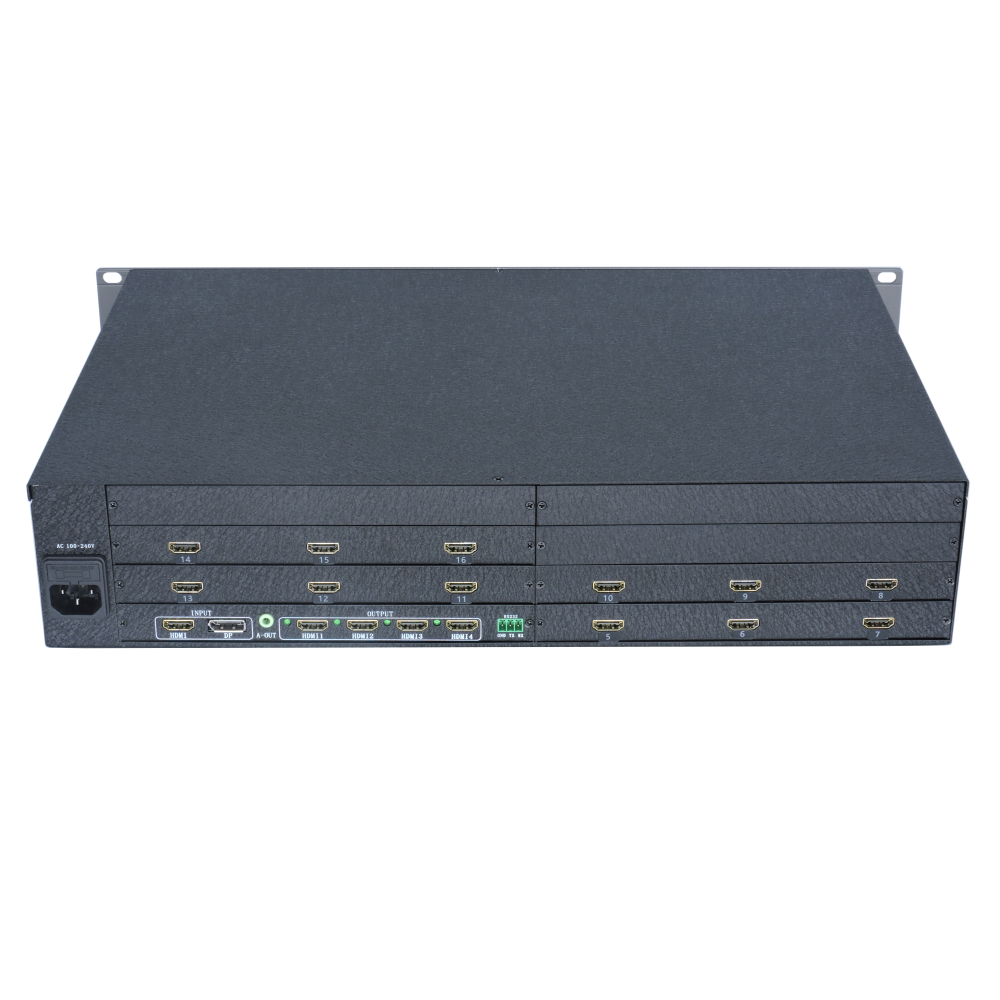

4K-6K Video Wall Controller (2U)
Any splicing mode customization with 16 splicing such as 1×2, 1×3, 1×4, 1×5, 1×6, 2×1, 2×2, 2×3, 3×1, 3×2, 4×1, 5×1, 6×1, etc. a super resolution display of 11520×3240 through three 6 outputs groups or two 9 outputs groups. with Image 180 degree rotation function,edge shielding function,Infrared remote control, chassis buttons, serial port control,Cascading to achieve super-resolution stitching
SEND US A MESSAGE
Description
- Support 1 channel DP1.2 and 1 channel HDMI1.4 input;
- Support any splicing mode customization within 16 splices;
- Modular design, can customize a variety of different splicing scales;
- A single DP input port supports 5760×3240@30HZ, 5760×1080@60HZ and other ultra-high resolution input;
- Support custom resolution function, realize super-resolution display with equal proportion without deformation and stretching;
- Supports a variety of output resolution options, compatible with LCD screens and projections with different resolutions;
- Support 1×2, 1×3, 2×1, 2×3, 3×1, 3×2, 3×3 complete point-to-point lossless display, and other modes are proportional display;
- Multiple units can be used together to achieve point-to-point display of super-large video walls;
- Supports 180-degree flip and edge shielding of any image;
- Support infrared remote control, chassis key, RS-232 control;
